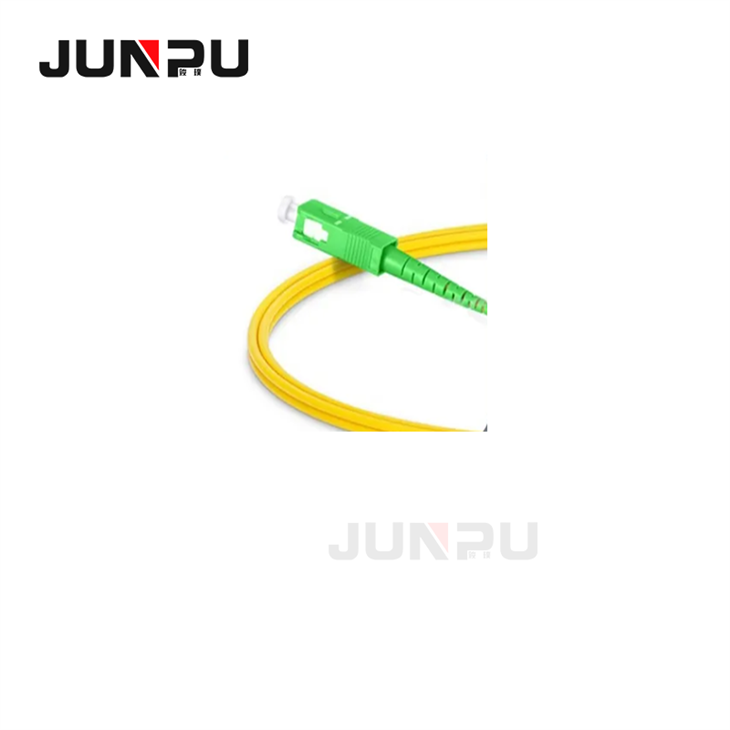

Ftth Upc Fiber Optic Pigtails
Taw qhia
Fiber optic pigtail yog fiber ntau optic cable txiav nrog lub Hoobkas-ntsia txuas ntawm ib kawg, tawm hauv lwm qhov kawg. Li no lub connector sab tuaj yeem txuas rau cov khoom siv thiab lwm sab melted nrog optical fiber cables. Pigtail thaj cords yog siv los txiav fiber ntau optic cables ntawm fusion lossis mechanical splicing.
Fiber optic pigtails tuaj yeem muab faib ua ib hom thiab multimode fibers. Tib hom fiber ntau pigtails, txheeb xyuas los ntawm lawv cov xim daj, siv 9/125 micron cable thiab raug txiav nrog ib hom fiber ntau txuas. Conversely, multimode fiber pigtails, feem ntau txiv kab ntxwv, siv ib tug 62.5/125 micron los yog ib tug 50/125 micron bulk multimode fiber cable, txiav nrog ib tug multimode fiber optic connector. Tsis tas li ntawd, 10G multimode fiber ntau cables (OM3 lossis OM4) muaj, nrog lub tsho xim rau cov pigtails feem ntau yog aqua.
Kev siv
|
|
|||||
|
Hom Connector
|
FC SC LC ST Simplex Duplex
|
||||
|
Hom Fiber
|
Ib hom SM / Multimode MM
|
||||
|
Insertion Loss (tseem)
|
Tsawg dua lossis sib npaug rau 0.3dB
|
||||
|
Rov Los Los
|
SM PC UPC Ntau dua lossis sib npaug rau 50dB; APC Ntau dua lossis sib npaug rau 60
|
||||
|
Cable Diameter
|
3. 0/2 0/0.9mm
|
||||
|
Ntev
|
1m / 2m / 3m / 5m .... lossis customized
|
||||
|
Ua haujlwm wavelength
|
1310-1550nm (SM); 850nm (MM)
|
||||
|
Kub kub
|
-40 ~ +75 degree
|
||||
|
|
|||||
Daim ntawv thov
Cov ntawv thov thiab kev lag luam uas siv fiber ntau optic pigtails suav nrogtelecommunications, cov ntaub ntawv chaw, chaw kho mob, thiab kev lag luam automation. Lawv yog qhov tseem ceeb hauv kev sib txuas ntau yam khoom siv xws li keyboards, routers, transceivers, thiab thaj vaj huam sib luag.
